KleanTrak Sanitary Belt Conveyor

Spend less time cleaning. Keep production moving.

KleanTrak combines an open stainless steel frame with a tensionless belt and accessible product-contact areas to simplify cleaning and changeovers. Configure the belt surface, conveying arrangement and support structure around your product, available space and hygiene requirements.

REQUEST AN APPLICATION REVIEW
KleanTrak sanitary belt conveyor illustration showing horizontal infeed, inclined conveying and discharge into a receiving hopper.

Configure the conveyor around your product and process.

KleanTrak can be configured to suit different products, conveying angles, cleaning requirements and plant layouts. Belt style, cleat design and conveyor arrangement are selected around the needs of the application.

FDA-compliant belt materials available.

CONFIGURATION OPTIONS

KleanTrak conveyors can be configured for conveying angles from 15° to 90°, with stationary or portable base arrangements available. Application-specific options include infeed and discharge chutes, drain pans, CIP systems, tilting mechanisms, removable guarding and controls.

KleanTrak Standard configuration

Standard

KleanTrak Incline configuration

Incline

KleanTrak Vertical configuration

Vertical

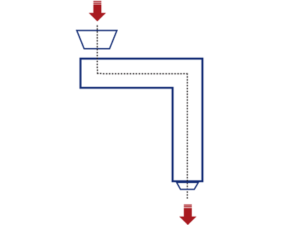

KleanTrak Lowerator configuration

Lowerator

Not sure which configuration fits your process?

REQUEST AN APPLICATION REVIEW

KleanTrak Specifications

Select the belt, construction and conveying arrangement around your product and process.

Technical Specifications

Construction

Frame
304 stainless steel
Belt material
Food-grade polyurethane
Support arrangements
Fixed or portable

Belt Options

Surfaces
Flat Top, Nub Top™ and Embedded Diamond Top
Product-handling options
Cleats, scoops and sidewalls, selected for the application
Belt width
Multiple widths available, selected around the application

Application Fit

Capacity
Selected around the material, belt width and conveying arrangement
Configurations
Standard, incline, vertical and lowerator
Cleaning access

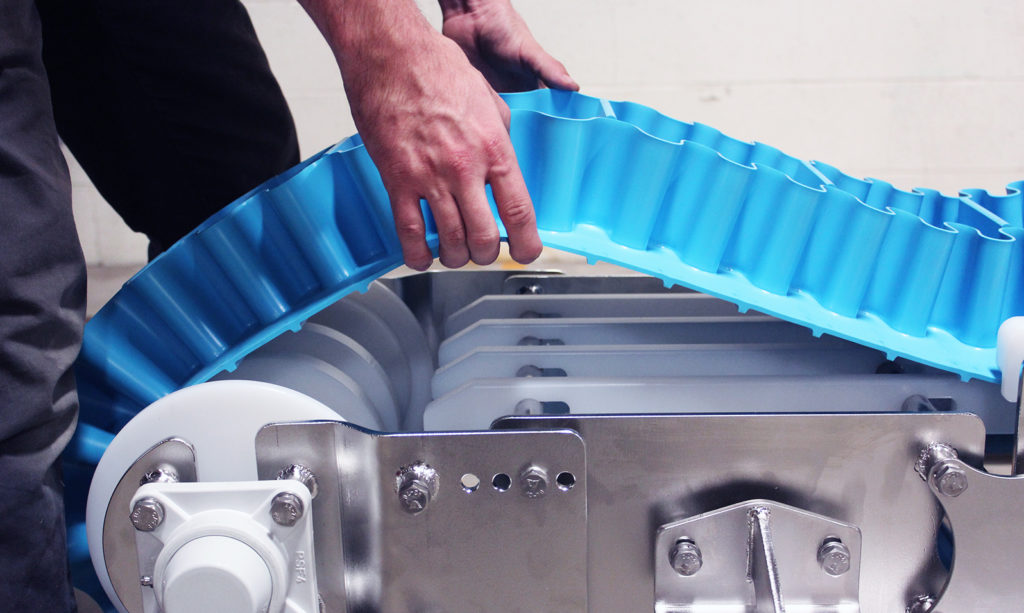

Removable belt hold-downs and support slats provide access beneath the belt

Belt Surface Options

Flat Top

Intralox ThermoDrive Flat Top belt with surface close-up

Nub Top™

Intralox ThermoDrive Nub Top belt with surface close-up

Embedded Diamond Top

Intralox ThermoDrive Embedded Diamond Top belt with surface close-up

Designed around the demands of hygienic processing.

FAST, EASY CLEANING

Spend less time cleaning and more time producing.

KleanTrak's open-frame design provides easy access to product-contact areas, while minimal horizontal surfaces and tool-less disassembly help simplify cleaning and reduce sanitation time.

Helps reduce: Sanitation Time • Changeover Time • Cleaning Labor • Downtime

HYGIENIC DESIGN

Reduce crevices where product and contaminants can accumulate.

Open stainless steel construction minimizes potential product-entrapment areas, while washdown-duty components and sealed, corrosion-resistant bearings are designed for demanding cleaning environments.

Helps reduce: Product Buildup • Contamination Risk • Harborage Areas • Cleaning Challenges

LOW BELT MAINTENANCE

Eliminate routine belt tracking and take-up adjustments.

Tensionless belt system with FDA-compliant food-contact belt materials. KleanTrak's tensionless drive system is designed without the belt stretch and drive slip associated with conventional belt systems, eliminating the need for routine take-up and tracking adjustments.

Helps reduce: Belt Adjustments • Maintenance Time • Unplanned Downtime • Belt-Related Issues

PRODUCT CONTAINMENT

Keep product on the belt and within the process.

Corrugated sidewalls help contain material during conveying, while different cleat and scoop configurations can be selected around the product and conveying requirements.

Helps reduce: Spillage • Product Loss • Cleanup • Material Escape

Hygienic processes create demanding conveying requirements.

Explore common applications where cleanability, washdown capability, product containment, contamination control and product integrity influence conveyor design.

Keep cleaning simple while protecting fragile products.

Food processing equipment must be cleaned thoroughly while minimizing crevices where product residue or contaminants can accumulate. Many products are also fragile or friable, making controlled conveying important for reducing unnecessary breakage and degradation.

KleanTrak combines open, easy-to-clean stainless steel construction with controlled belt conveying for fragile products such as cereals, snack foods, cookies and other breakage-sensitive materials. Selected FDA-compliant food-contact belt materials, washdown-duty components and tool-less disassembly support demanding food processing environments.

Materials and applications include:

  • Coffee beans, ground coffee and soluble coffee
  • Candy and confectionery
  • Chocolate-covered products
  • Frozen fruit and vegetables
  • Frozen French fries
  • Cereals and cereal flakes
  • Noodles and pasta
  • Spiced bread crumbs
  • Potato chips and snack foods
  • Peanuts and nuts
  • Rice
  • Soy products
  • Cookies
  • Fish and shrimp
  • Fragile and friable food products
Explore Food Processing

Handle a wide range of pet food products while simplifying cleaning.

Pet food production can involve everything from dry, friable products to wet and fresh foods, creating different challenges around product handling, containment and cleaning. KleanTrak combines controlled belt conveying with open stainless steel construction and easy access to product-contact areas for regular cleaning and washdown.

Applications include:

  • Dry pet food and kibble
  • Wet and moist pet food
  • Fresh and refrigerated pet food
  • Baked and extruded treats
  • Biscuits
  • Dental chews and treats
  • Freeze-dried products
  • Dehydrated treats
  • Coated products
  • Fragile or friable products

Move sensitive products through processes where cleanability matters.

Pharmaceutical and nutraceutical production can require careful product handling alongside good access for cleaning and contamination control. KleanTrak's open stainless steel construction, tool-less disassembly and controlled belt conveying make it suitable for appropriate hygienic applications involving fragile or finished products.

Applications include:

  • Tablets and caplets
  • Capsules
  • Lozenges and cough drops
  • Gummies and soft chews
  • Nutritional tablets
  • Vitamin and supplement products
  • Finished-dose products
  • Fragile or coated products
Explore Pharmaceutical & Nutraceutical

Configure the conveyor around the cleaning requirements of the process.

KleanTrak can also be considered for applications outside traditional food and pharmaceutical processing where frequent cleaning, washdown and access to product-contact areas influence conveyor selection.

Its stainless steel construction, open frame, washdown-duty components and available cleaning options allow the conveyor to be configured around the product, operating environment and sanitation requirements.

KleanTrak can be integrated throughout the production process, including transfers between processing equipment and feeding weighing, filling and packaging systems.

Not sure whether KleanTrak fits your process?

Tell us what you're conveying and how the equipment needs to be cleaned. We can review the product, process and sanitation requirements to determine whether KleanTrak is a good fit.

DISCUSS YOUR APPLICATION

Built around your process and plant layout.

KleanTrak can be configured for horizontal transfer, inclined conveying and vertical elevation, allowing the conveyor to move product between different stages of a process while working within available floor space and equipment layouts.

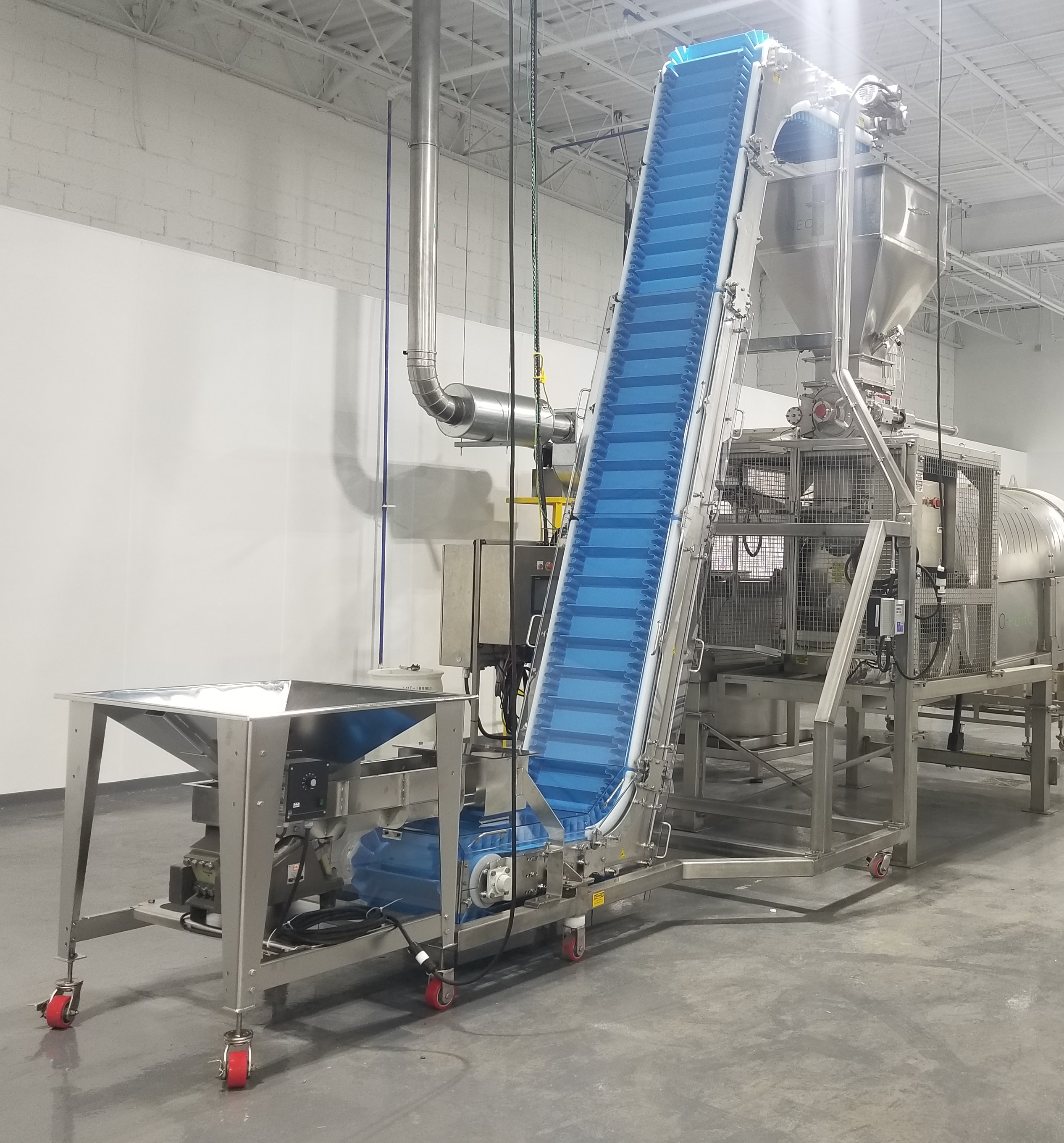

INCLINED CONVEYING

Move product between different elevations while maintaining controlled product handling. KleanTrak can operate at conveying angles from 15° to 90°, with the belt and cleat configuration selected around the product and required elevation.

FLAT BELT CONVEYING

For applications that require horizontal transfer, KleanTrak can be configured as a flat belt conveyor while retaining the same open, easy-to-clean construction designed for hygienic and washdown environments.

VERTICAL CONVEYING

Where floor space is limited or significant elevation is required, KleanTrak can be configured for steep or vertical conveying up to 90°, providing a compact way to move product between process elevations.

PORTABLE CONFIGURATIONS

A portable base allows KleanTrak to be moved between production areas or relocated for cleaning, providing additional flexibility where processes, production lines or cleaning procedures require equipment to be moved.

PROCESS INTEGRATION

KleanTrak can be integrated with upstream and downstream equipment to create a complete material handling solution. Infeed and discharge arrangements can be configured around bulk bag unloading, processing, weighing, filling, packaging and other equipment.

Have a challenging layout?

Share your equipment layout, required elevation and process details with our team. We can help determine how KleanTrak can be configured around the application.

DISCUSS YOUR APPLICATION

KleanTrak Equipment Details

From inclined product transfer to integration with bulk material handling and packaging equipment, KleanTrak can be configured around the product, process and available plant space. The equipment shown has a stainless steel frame and belt conveying arrangement.

When cleanability and product handling matter, conveyor design makes a difference.

Compare cleaning access, product handling and layout requirements when selecting a sanitary conveyor.

ConsiderationKleanTrakAlternative Conveying Methods
Cleaning AccessOpen frame and removable belt hold-downs and support slats provide access beneath the belt.Access varies; other sanitary belt conveyors also offer removable components and open-frame designs.
Belt OperationTensionless belt operation reduces routine belt-tension adjustment.Tension and tracking requirements depend on the drive and belt design.
Product HandlingBelt surfaces, cleats and sidewalls can be selected around the product and conveying angle.Product support, agitation and containment depend on the conveying principle and configuration.
Process LayoutStandard, incline, vertical and lowerator arrangements accommodate different process layouts.Available conveying angles and arrangements depend on the equipment design.
Cleaning ProvisionsCleaning access, drain pans and clean-in-place options can be incorporated around the application.Cleaning provisions vary by construction and application.

WHEN DOES KLEANTRAK MAKE SENSE?

KleanTrak is particularly well suited to applications where frequent cleaning, washdown, easy access to product-contact areas, or gentle handling of fragile and friable products influence conveyor selection.

For applications where other factors such as complete enclosure, dust containment or different material-handling requirements are more important, another conveying technology may be a better fit.

DISCUSS YOUR APPLICATION

KLEANTRAK FAQ

A sanitary belt conveyor is designed for applications where cleanliness and washdown capability are essential. These conveyors are commonly used to move food products, packaged goods, and other bulk materials through a processing or packaging operation while minimizing the risk of contamination.

The KleanTrak sanitary belt conveyor is engineered for use in food, pharmaceutical, and other washdown environments where equipment must support strict cleaning procedures and hygienic operation.

Sanitary conveyors are designed to support cleaning and reduce the risk of contamination during production. The KleanTrak conveyor incorporates several sanitary design features including:

  • Hygienic belt design with selected FDA-compliant food-contact belt materials for use in sanitary applications
  • Stainless steel frame construction using 304 stainless steel
  • An open frame design that allows easy access for cleaning
  • Minimal horizontal surfaces where product or moisture could accumulate
  • Tool free disassembly for fast cleaning and inspection

These features help manufacturers maintain the sanitary levels required in industries with strict hygiene expectations.

Sanitary conveying equipment helps manufacturers meet food safety regulations and other governmental regulations that apply to food and pharmaceutical production.

KleanTrak can be configured with selected FDA-compliant food-contact belt materials for the application. Confirm material selection and applicable requirements for the specific application.

Sanitary belt conveyors are widely used in industries where product cleanliness and washdown capability are required. Typical industries include:

  • Food processing and food manufacturing
  • Pharmaceutical industry
  • Nutraceutical industries
  • Specialty product manufacturing

These conveyors are well-suited for handling items such as frozen foods, snack products, cereal, pasta, nuts, and similar products that require hygienic conveying.

Explore food processing applications

The KleanTrak system uses a food-grade polyurethane belt designed for sanitary conveying environments.

The belt material is available in several configurations, including:

  • Blue, white, or natural belt colors
  • Cleated designs for product elevation
  • Corrugated sidewalls for product containment
  • Endless or laced belt options

These options allow the conveyor to be matched to specific product handling requirements and conveying angles.

Yes. The KleanTrak sanitary belt conveyor can elevate product at steep angles to support compact production layouts.

Depending on the application, the conveyor can operate from incline conveying up to vertical conveying angles, allowing product to move efficiently between different levels within a processing line or packaging operation.

Yes. Sanitary conveyors are designed with easy maintenance and cleaning in mind.

The KleanTrak conveyor includes several features that simplify maintenance:

  • Open frame construction
  • Tool free disassembly for cleaning access
  • Corrosion resistant bearings
  • Washdown duty motor
  • A patented tensionless drive system that eliminates belt slippage

These features help reduce downtime and support reliable operation in demanding washdown environments.

Yes. Every conveying application is different, and sanitary conveyors can be configured to match specific processing requirements.

Available customization options include:

  • Portable or mobile bases
  • Removable personnel guarding
  • Infeed and discharge chutes
  • CIP systems and drain pans
  • Tilting mechanisms
  • Discharge plough assemblies

These options allow manufacturers to integrate the conveyor into existing equipment layouts and production workflows.

Conveyor lengths and conveying speed depend on the product being handled and the layout of the processing line.

Factors that influence system design include:

  • Product characteristics
  • Required throughput
  • Elevation change between equipment
  • Available floor space
  • Required sanitary access for cleaning

Because every application is different, UniTrak conveyors are typically engineered to meet the specific needs of the customer’s conveying system.
